1200CX ROADSTER™

ADRENALINE MIXED WITH A SHOT OF GARAGE-BUILT CUSTOM STYLE

1200 CC Air-Cooled Evolution® Engine

An iconic V-Twin engine that is renowned for its massive low-end torque and soul-satisfying sound. Lightweight aluminum heads and cylinders improve air-cooling efficiency.

Blacked-Out Styling

There’s plenty of black to bring a dark edge to the garage-built look of the Roadster™ motorcycle. The mirrors, belt guard and headlamp are black. The oval air cleaner has a black insert. There are slotted black exhaust shields and a blacked-out powertrain.

Lowered Bars & Speedo With Tach

You get the performance look and feel of slammed handlebars that put you in an aggressive riding position. And the gauge includes a speedometer and tach so you can keep track of what’s going on in your power plant.

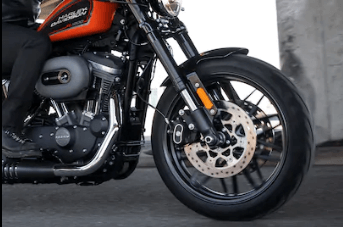

43mm Front Suspension With Inverted Forks

The 43 mm front suspension with inverted forks features cartridge damping and the brawny look of massive new triple clamps. They’ll keep your rubber on the road when the pavement gets rough.

Dual Disc Front Brakes With Floating Rotors

Dual disc front brakes with floating rotors so you can be more confident in your stopping with all that muscle behind you.

Aggressive And Comfortable Two-Up Seat

The optimal combination of comfort and custom style. It’s a low profile, two-up seat with a nice, deep scoop to keep you firmly planted under acceleration, and it puts you just 29.5 inches off the ground for a low center of gravity and confident handling.

Light-Weight Offset Split 5-Spoke Wheels

19-inch front and 18-inch rear wheels that give the bike a custom look, easy-steering and a better power to weight ratio.

MSRP Color
$11,849
ABS
$795
Security System
$395
California Emissions
$100
Freight
$360
Color:SOLID
Vivid Black • Black Denim • Stone Washed White Pearl • Performance Orange

Length
86 in. (2,185 mm)
Seat Height, Laden
29.5 in. (749 mm)
Seat Height, Unladen
30.9 in. (785 mm)
Ground Clearance
5.9 in. (150 mm)
Rake
28.9
Trail
5.5 in. (140 mm)
Wheelbase
59.3 in. (1,505 mm)

Tires, Front Specification
120/70R19 M/C
Tires, Rear Specification
150/70R18 M/C
Fuel Capacity
3.3 gal. (12.5 l)
Oil Capacity
2.8 qt. (2.6 l)

Engine Name
1200cc Evolution®
Bore
3.5 in. (88.9 mm)
Stroke
3.8 in. (96.8 mm)
Displacement
73.4 cu in (1,202 cc)
Compression Ratio
10:1
Fuel System
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields

Primary Drive
Chain, 38/57 ratio
Gear Ratios (overall) 1st
9.315
Gear Ratios (overall) 2nd
6.653
Gear Ratios (overall) 3rd
4.948
Gear Ratios (overall) 4th
4.102
Gear Ratios (overall) 5th
3.517
Gear Ratios (overall) 6th
N/A

Wheels, Optional Style Type
N/A
Wheels, Front Type
Black Offset, Split 5-Spoke Cast Aluminum
Wheels, Rear Type
Black Offset, Split 5-Spoke Cast Aluminum
Brakes, Caliper Type
Dual-piston front, Dual-piston rear

Engine Torque Testing Method
J1349
Engine Torque
76 ft-lb (103 Nm)
Engine Torque
3,750
Lean Angle, Right
30.8
Lean Angle, Left
31.1
Fuel Economy Testing Method
Estimated City/Hwy
Fuel Economy
48 mpg (4.9 l/100 km)

CO2 Emissions Testing Method
N/A
CO2 Emissions
N/A
C
Mid

Gauges Overview
Lights (as per country regulation), Indicator Lamps
High beam, neutral, low oil pressure, turn signals, engie diagnostics, low fuel warning, low battery, security system (If equipped), ABS (if equipped)
Gauges
